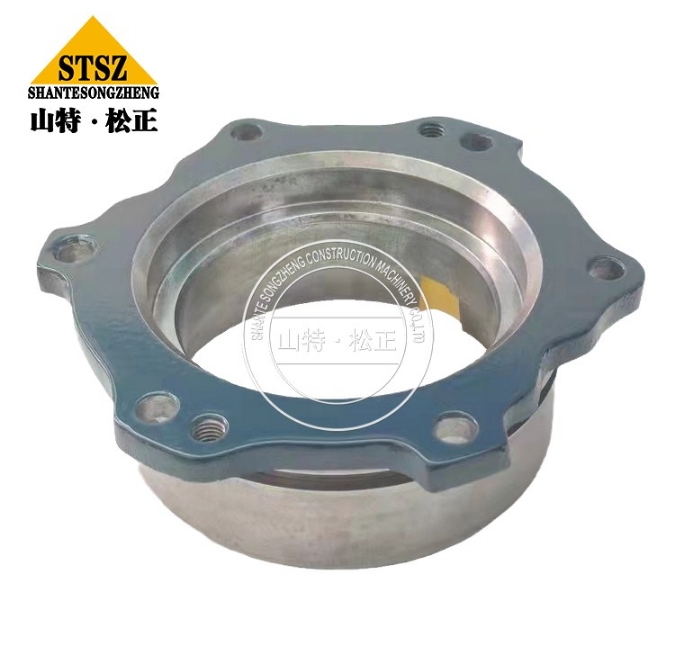

LOADER PARTS WA470/480-6 RETAINER 714-07-27140

LOADER PARTS WA470/480-6 RETAINER 714-07-27140

Main products of Santsongzheng Engineering Machinery Co., Ltd.:

1) engine accessories: engine cylinder block, cylinder assembly, engine four-way matching, crankshaft, camshaft, large and small bearings, intake and exhaust valves, overhaul kits, cylinder heads, connecting rods, turbochargers, shock absorbers, water pumps, oil pumps, generators, starter motors, oil pans, thermostats, oil pipes, fuel pipes, oil coolers, diesel pumps, injectors, oil outlet valves, etc.

2) hydraulic parts: hydraulic pumps and accessories (pump gallbladders, plungers, distributors, nine-hole plates, copper balls), slewing motors, slewing reducers, slewing bearings, distribution valves, travel motors, hydraulic pump solenoid valves, large pump bearings, small hydraulic pump bearings, hydraulic pump vertical shafts, PC valves, servo pistons, hydraulic pump repair kits, boom cylinder repair kits, tensioner cylinder repair kits, bucket cylinder overhaul kits, boom/arm/bucket cylinders.

3) chassis parts: chain, track shoe, gear ring, supporting wheel, supporting wheel, guide wheel, tensioning cylinder, bucket, various pin sleeves. Bucket, bucket pin, bushing, boom root pin, bucket bushing, boom turntable sleeve, large and small arm connecting pin, horse head, horse head flange bushing

4) Cab accessories: cab shell, interior panel, glass, display, computer board, seat, wiring harness, air conditioning control panel, walking PPC valve, floor mat, cab wiring harness, engine wiring harness, starting wiring harness, PPC valve pilot conduit, starting switch, operating handle.

What to do if the excavator can't start? In fact, it can be easily solved in three steps.

Reason 1: Circuit

If there is no response when the ignition switch is turned on, or the starter motor speed is too low, and you can feel a sense of weakness, then it can be roughly determined that there is a fault in the starter circuit.

1. Check the battery pile head

Clean the battery pile head, and then tighten the screws of the pile head. Loose battery pile heads will cause poor contact. Then observe whether there is a broken line or a loose connector.

2. Check the relay box and fuse box

Open the relay box to check whether the connector is loose, and then open the fuse box to check whether the starter circuit fuse is burned out.

Failure of the starter motor or generator can also cause the car to fail to start. The generator failure cannot generate electricity normally, and the battery power cannot be replenished, resulting in a low speed or no rotation of the starter motor.

Reason 2: Oil circuit. If you can hear the starter motor turning very strongly when you turn the start key, and the engine does not have abnormal mechanical friction sound, then it can be roughly determined that it is caused by the oil circuit.

1. Check whether there is enough fuel. First, check whether there is oil in the fuel tank. For vehicles with a good fuel gauge, you can observe the amount of fuel in the tank through the fuel gauge. It is best to check whether there is enough fuel in the tank through the fuel level gauge or by opening the fuel tank cap. After all, the fuel gauge can also fail.

2. Drain the oil-water separator. Many owners do not have the habit of draining the oil-water separator every day. If the oil used happens to be of poor quality, it may not be able to start due to excessive water in the diesel. The oil-water separator generally has a red buoy. When the buoy of the oil-water separator is in the middle, unscrew the drain bolt at the bottom of the oil-water separator in time to drain the water.

3. Exhaust the engine, find the position of the hand oil pump, loosen the bleed bolt next to the hand oil pump, press the hand oil pump by hand until all the diesel comes out of the bleed bolt, and then tighten the bleed bolt. Generally, the excavator can start after checking the circuit and oil circuit. If it still doesn't work, it's time to consider mechanical reasons.

济宁山特松正工程机械配件二十余年的配件公司，信誉质量有保障！

济宁山特松正工程机械有限公司主营：进口挖掘机配件、进口装载机配件。进口推土机配件、进口平地机配件、进口矿山自卸卡车配件、进口移动破碎机、山推（SHANTUI）卡特/CAT、卡特平地机配件，卡特挖掘机配件，卡特推土机配件，卡特矿卡配件，卡特发电机组，沃尔沃VOLVO、徐工XCMC等全车配件 KMP中国总代理。

配件供应部周曼:电话: 13563767560（微信同号）

QQ：1985625090

邮箱：012@stszcm.com

Jining Shante songzheng construction machinery parts of 20 years of accessories company, credibility and quality is guaranteed!

Main products: , SHANTUI, Caterpillar/CAT, VOLVO,CUMMINS,XCMC and other auto parts

Zhou manager of accessories supply department: Telephone: 86+13563767560(same as WeChat)

WhatsApp:+8613563767560

WeChat：13563767560

Email：012@stszcm.com

D375A-5D主控阀709-61-11701
WD600-3变速器711-73-21001
GD825A-2制动阀235-44-11690
GD825A-2发动机控制器7872-10-7600
PC2000-11工字架总成21T-70-00360
21T-70-33151
21T-70-33161
21T-70-33131
21T-70-33141
HD1500-8压缩机皮带562-07-3A580
D275A-5风扇泵708-1U-00133
HD785-7减速机561-88-70306
PC850-8油缸座209-30-55121
油缸弹簧209-30-74110
油缸209-30-65111
后桥总成561-88-70006
减速器总成561-88-70203
差速器总成561-22-71003
后桥壳561-22-73115
半轴套管561-22-73212
后节传动轴561-20-72002
小齿轮和齿轮总成561-22-71206
后轮毂561-88-72710
缸筒561-33-75111
缸筒561-33-71115
壳561-22-71102-01
壳总成561-22-71502
举升转向泵705-56-44090
定位器561-33-71931
齿轮561-22-72541
转向控制阀561-40-84300
行星架561-22-72613
外齿轮561-33-75211
外齿轮561-33-71211
轴561-22-72410
HD1500-8终传动总成562-22-50200
HD1500-8终传动562-22-50300
WA900-3万向节427-20-12590十字轴
WA900轭和轴427-20-11690
阀711-56-36601
齿轮427-15-13721
齿轮427-15-13731
427-15-00161
427-15-19470
D475A-5EO散热器198-03-75590
PC2000-8控制阀709-1A-11400
PC2000-8主阀709-1A-11300
PC2000-8液压主泵708-2K-00120
HM400-2阀56B-43-17411
阀56B-43-17201
WA380Z-6离合器714-12-32080
WA380-6-8壳体423-22-32662
WA470/480-6变速器立轴714-07-42281
WA380-6齿轮714-12-32541
195-30-67330
195-30-67340
195-30-67410
01011-62720
